Enphase Envoy or IQ Gateway #

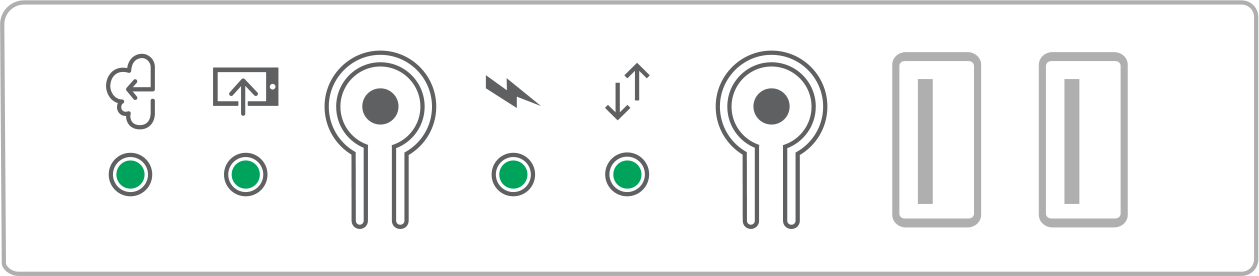

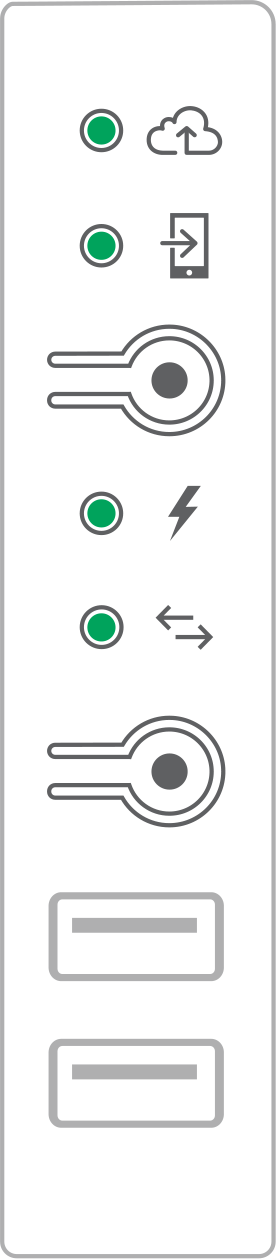

The LED/button panel can be placed horizontally (IQ Combiner) or vertically (IQ Gateway or Enovy S) depending on the Gateway model you have. See below 2 images to see what applies to you.
LED indicators on the Envoy S and IQ Gateway #
Enphase communication LED
Green when connected to the Enphase Cloud.
Blinks green when the Gateway tries to connect to the Enphase Cloud.
Burns continuously orange when only connected to the local network, i.e., without internet connection.
Off if no network is available.
AP mode LED
Green when AP mode is enabled and the Gateway Wi-Fi network is available.
Off when AP mode is disabled.
The default setting is off, unless the installer or you use AP mode to reconnect to a new WiFi network AP Mode Button
Only used by the installer during installation or to reconfigure the system and connect to a new network.
Activates/ disables the wireless access point (AP) of the Gateway to connect directly to a mobile phone. Power generation LED
Green light when all micro-inverters produce current.
Blinks green when an upgrade of the micro-converters is performed.
Green when all allocated micro-converters communicate with the Gateway.
Orange as one or more micro-transducers do not communicate with the Gateway.
Out if all micro-transducers don't communicate with the Gateway.
Mostly orange at sunrise/sunset and from pine at night. Device communication LED
Blinks green when the Gateway searches for micro-inverters.
Green when all allocated micro-converters communicate with the Gateway.
Orange as one or more micro-transducers do not communicate with the Gateway.
Out if all micro-transducers don't communicate with the Gateway.
Mostly orange at sunrise/sunset and from pine at night. Device Scan Button
Only used by the installer during installation or to configure the system.
Start/stop a 15 minute scan for devices via the power grid.
All LED lamps
Blinks green during a software upgrade.
Blinks orange when starting the IQ Gateway.
